763824D

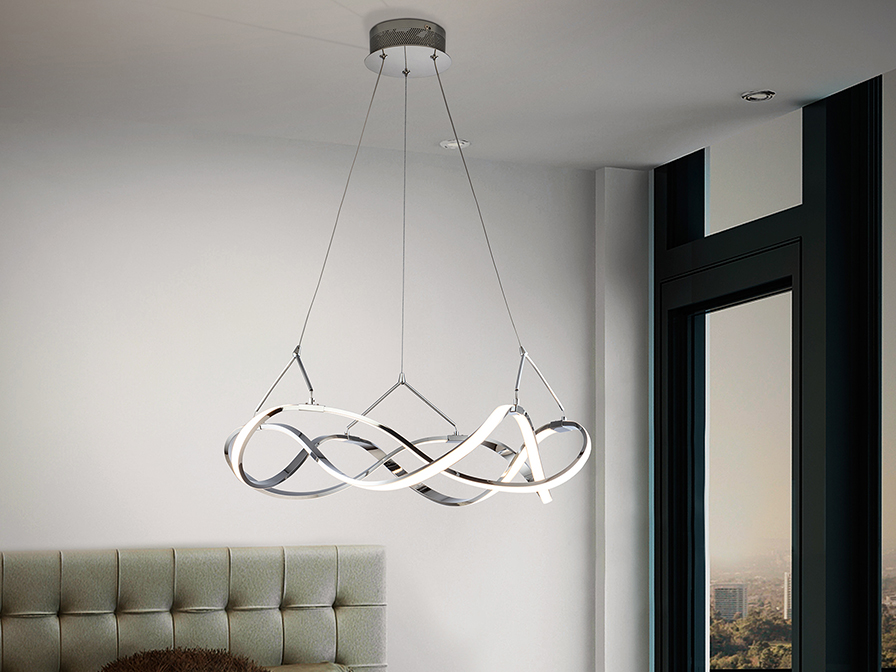

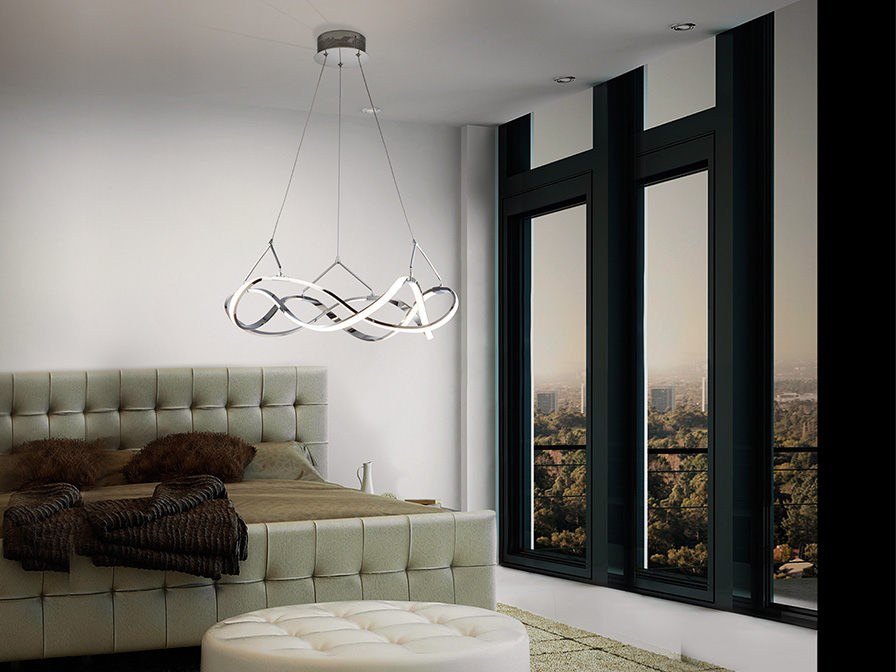

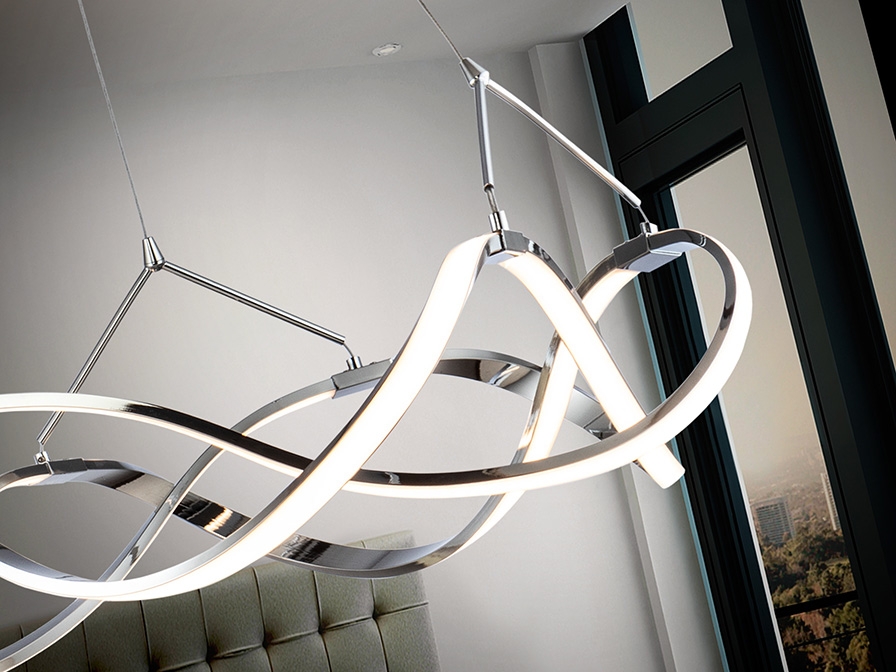

·MOLLY· LED LAMP Ø53 CHROME DIMMABLE

>>ITEM CANCELLED<<

This product includes LED drivers with dimmer of 0-10V or PWM, a receiver and a remote control by radiofrecuency. To use with wall dimmer, use only these types of dimmers, any other would damage the LED driver.

Unit/s

GENERAL INFORMATION

Catalogue:
Page:
EAN Code:

I38 Ligthing
18
8435435332228

SIZES

Sizes:
Height installed:
Weight:

ø53.0 ↨ 22.0 cm
55.0/ max. 130.0 cm
1.2 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

2.9 Kg
0.0690 m³
↔ 64.0 ↨ 19.0

57.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Dimmable:
Regulation:
Dimmer reference:
Colour temperature:
Average lifespan:
Power factor:
CRI:

led strip
F
IP 20
Class 1
30W
180/240 V
50/60 Hz
2,700 lm
Yes
REMOTE CONTROL
600501
3000 K
50,000h
>0.90
>80

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Type of dimming:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary voltaje:
Sizes:

SCHULLER
72402
1 Unit/s
Sí
1-10V
40W
50-60 Hz
180-240 V
Voltaje constante
24 V
↔ 14.0 ↨ 3.0

4.5 cm

ADDITIONAL INFORMATION

Material:
Finish:

Aluminium, acrylic
Chrome, opal
