781129

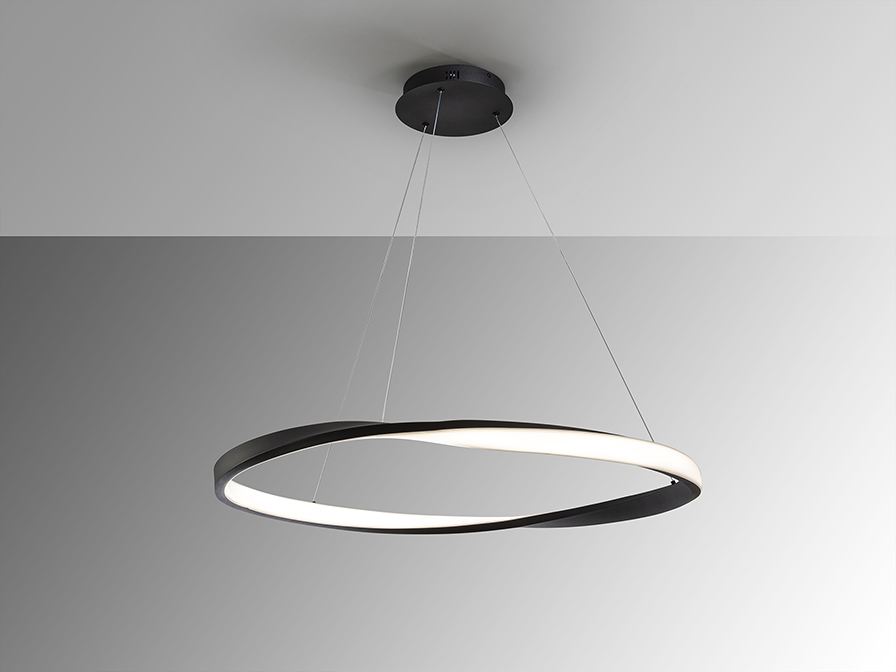

ALTAIR - BLACK LAMP Ø80

>>ITEM CANCELLED<<

· This lamp is supplied with GRAVITY TOGGLES, to improve ceiling fixing. This product uses LED driver with TRIAC type and 0-10V dimming. It can be dimmed using a LED wall dimmer with these features...110v version available.

GENERAL INFORMATION

Catalogue:
Page:
EAN Code:

i42 Lighting
17
8435435337360

SIZES

Sizes:
Height installed:
Weight:

ø85.0 ↨ 4.0 cm
60.0/ max. 130.0 cm
2.7 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

5.2 Kg
0.0840 m³
↔ 87.0 ↨ 11.0

88.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Colour temperature:
Average lifespan:
Power factor:
CRI:

led strip
G
IP 20
Class 1
47W
180/240 V
50/60 Hz
2,700 lm
4000 K
50,000h
>0.95
>80

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Type of dimming:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary voltaje:
Sizes:

SCHULLER
74062
1 Unit/s
Sí
Triac&0-10V
60W
50-60 Hz
180-240 V
Voltaje constante
24 V
↔ 13.5 ↨ 3.0

4.7 cm

ADDITIONAL INFORMATION

Material:
Finish:
Sizes of the canopy (space for installation):

Metal, silicone
Matt black, opal
ø19.0 ↨ 4.0 cm
