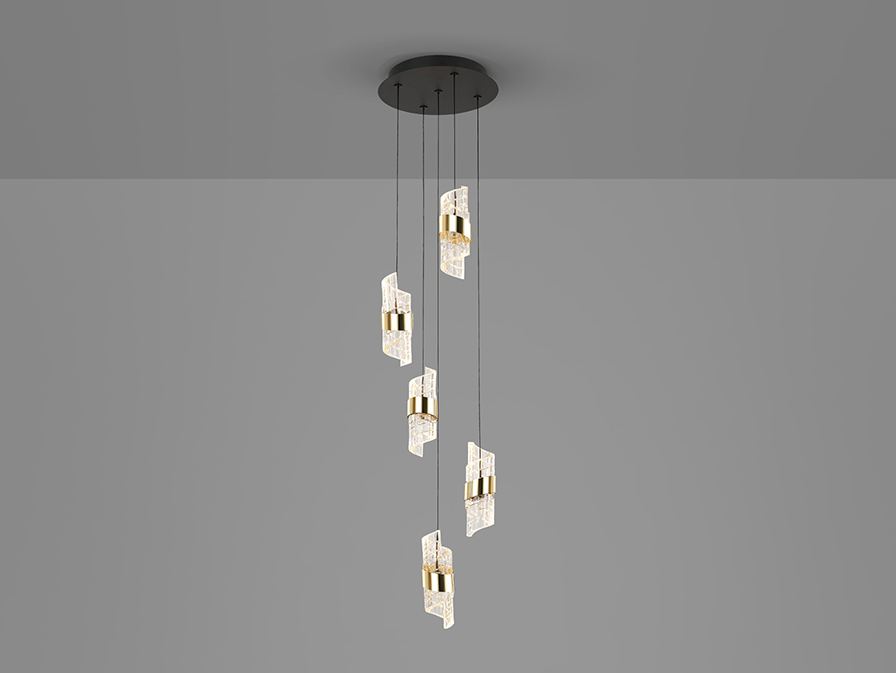

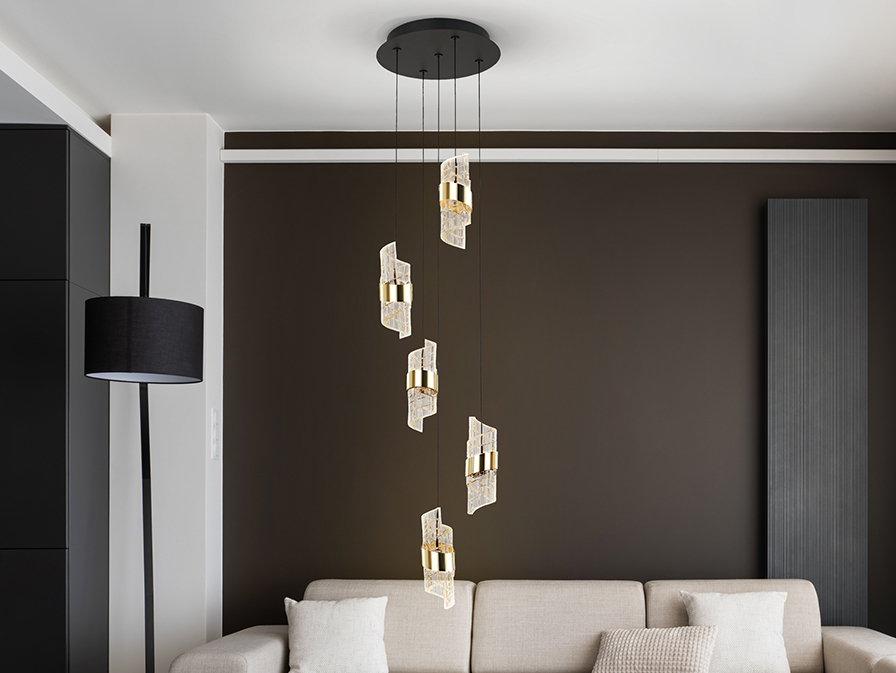

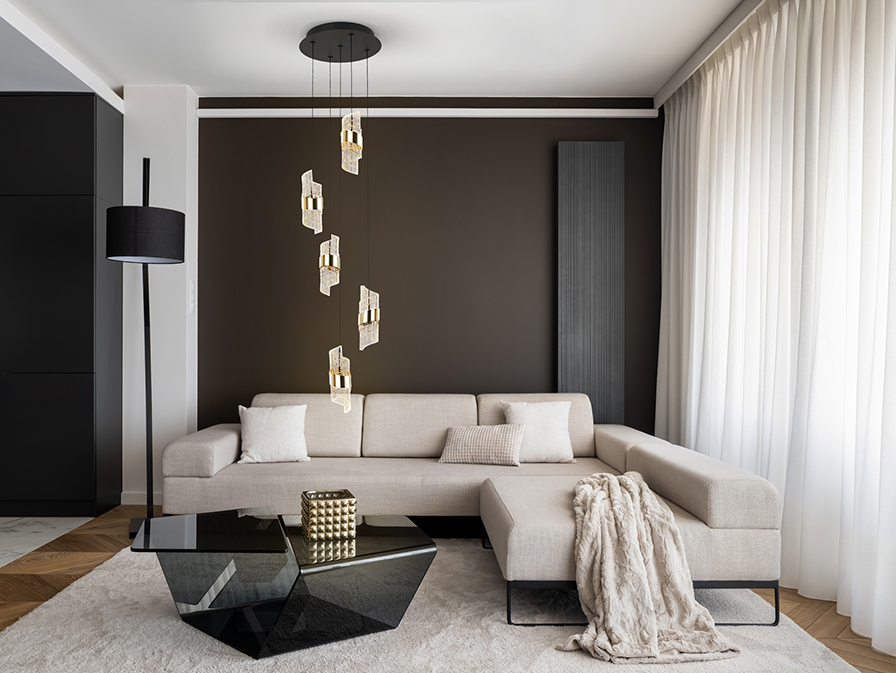

ILIADA - LAMP 5L BLACK-GOLD D30
Lamp with 5 LED lights. Made of metal with matt black and bright gold finish. Shades with spiral design, made of molded and carved acrylic. Height adjustable. 35W LEDs.3,220 lm. 3,000 K. DIMMABLE
This product uses LED driver with TRIAC type and 0-10V dimming. It can be dimmed using a LED wall dimmer with these features. · This lamp is supplied with GRAVITY TOGGLES, to improve ceiling fixing.
GENERAL INFORMATION
EAN Code:
Type:
Collection:
Type:
Collection:
8435435339036
Pendants
Iliada
Pendants
Iliada
SIZES
Sizes:
Height installed:
Weight:
Height installed:
Weight:
ø30.0 ↨ 23.0 cm
35.0/ max. 200.0 cm
4.6 Kg
35.0/ max. 200.0 cm
4.6 Kg
SIZES WITH PACKAGING
Weight:
Volume:
Sizes:
Contains:
Volume:
Sizes:
Contains:
5.4 Kg
0.0340 m³
↔ 44.0 ↨ 20.0 39.0 cm
1 Unit/s
0.0340 m³
↔ 44.0 ↨ 20.0 39.0 cm
1 Unit/s
TECHNICAL INFORMATION
Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Colour temperature:
Average lifespan:
Power factor:
CRI:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Colour temperature:
Average lifespan:
Power factor:
CRI:
PCB
F
IP 20
Class 1
35W
180/240 V
50/60 Hz
3,220 lm
3000 K
50,000h
>0.97
>90
F
IP 20
Class 1
35W
180/240 V
50/60 Hz
3,220 lm
3000 K
50,000h
>0.97
>90
DRIVER LED
Make:
Model:
Quantity:
Dimmable:
Type of dimming:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary voltaje:
Sizes:
Model:
Quantity:
Dimmable:
Type of dimming:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary voltaje:
Sizes:
SCHULLER
74062
1 Unit/s
SÃ
Triac&0-10V
60W
50-60 Hz
180-240 V
Voltaje constante
24 V
↔ 13.5 ↨ 3.0 4.7 cm
74062
1 Unit/s
SÃ
Triac&0-10V
60W
50-60 Hz
180-240 V
Voltaje constante
24 V
↔ 13.5 ↨ 3.0 4.7 cm
ADDITIONAL INFORMATION
Material:
Finish:
Sizes of the shade / glass shad:
Sizes of the canopy (space for installation):
Finish:
Sizes of the shade / glass shad:
Sizes of the canopy (space for installation):
Metal, acrylic
Black, gold, clear
ø7.0 ↨ 23.0 cm
ø25.0 ↨ 4.0 cm
Black, gold, clear
ø7.0 ↨ 23.0 cm
ø25.0 ↨ 4.0 cm
