Ring717526
·RING· LAMP, 1 BLACK RING

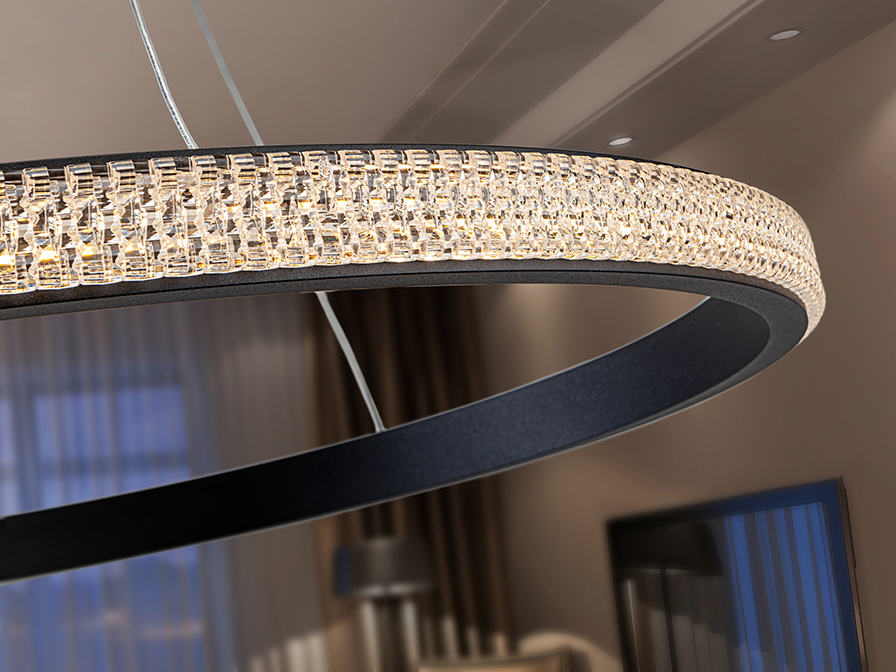

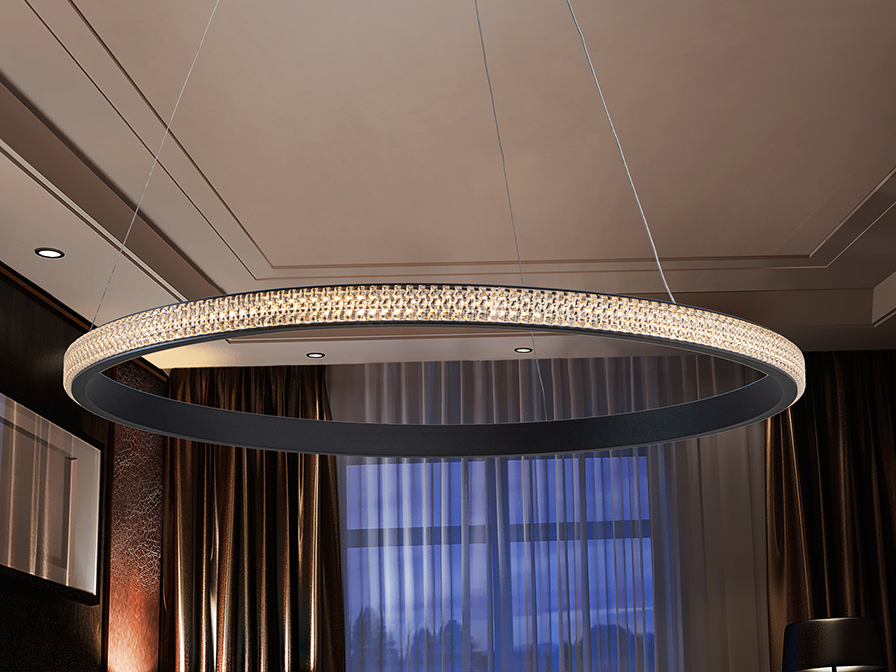

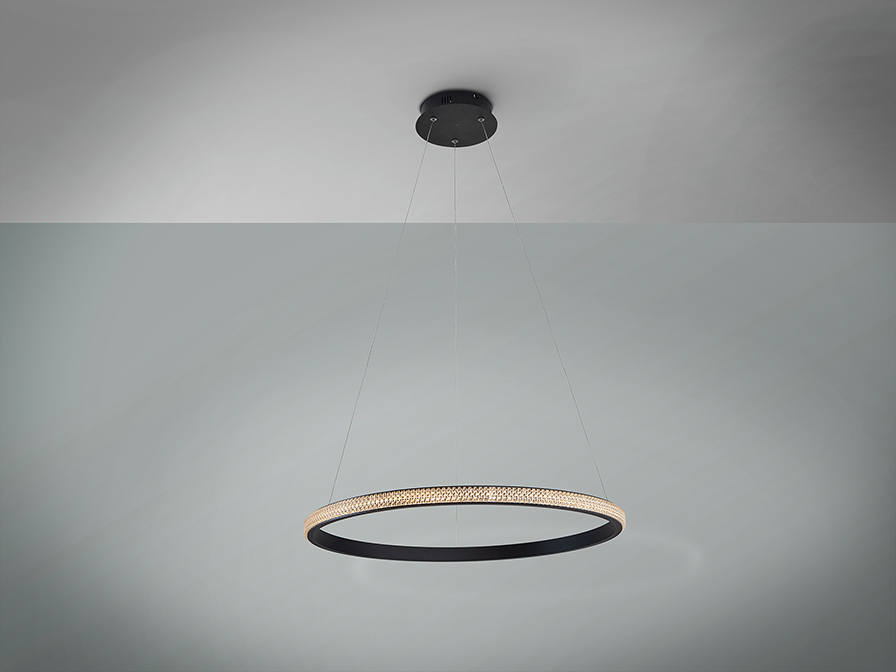

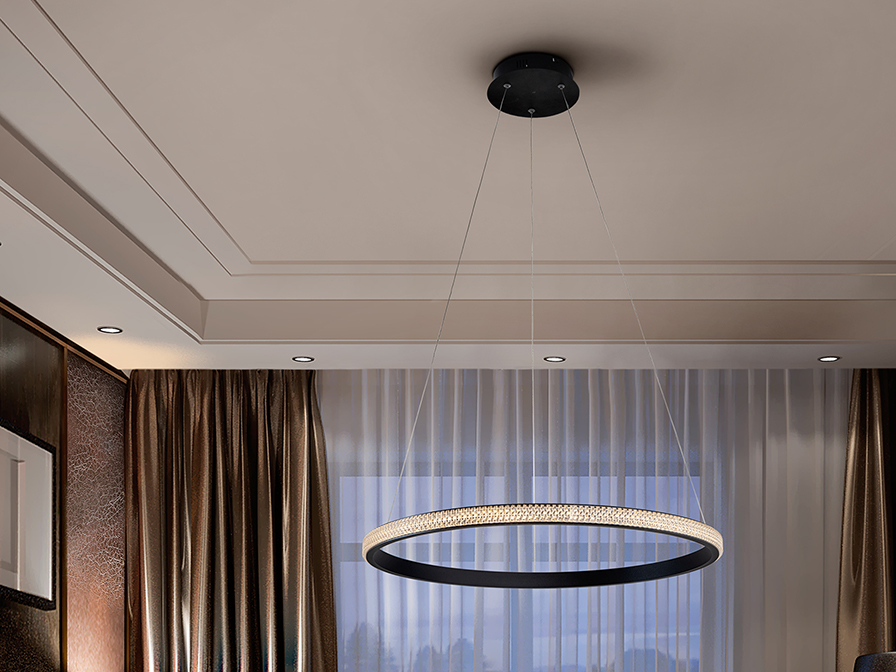

Lamp made of metal and aluminium finished in sanded matt black. Ring with diffuser of clear acrylic pieces. 25W LED. 1250 lm. 3.000 K.
· This lamp is supplied with GRAVITY TOGGLES, to improve ceiling fixing.
GENERAL INFORMATION
Catalogue:
Page:
EAN Code:
Type:
Collection:
Page:
EAN Code:
Type:
Collection:
i42 Lighting
95
8435435330323
Pendants
Ring
95
8435435330323
Pendants
Ring
SIZES
Sizes:
Height installed:
Weight:
Height installed:
Weight:
ø61.0 ↨ 3.0 cm
45.0/ max. 120.0 cm
1.5 Kg
45.0/ max. 120.0 cm
1.5 Kg
SIZES WITH PACKAGING
Weight:
Volume:
Sizes:
Contains:
Volume:
Sizes:
Contains:
3.1 Kg
0.0600 m³
↔ 68.0 ↨ 13.0
68.0 cm
1 Unit/s
0.0600 m³
↔ 68.0 ↨ 13.0
68.0 cm1 Unit/s
TECHNICAL INFORMATION
Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Colour temperature:
Average lifespan:
Power factor:
CRI:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Colour temperature:
Average lifespan:
Power factor:
CRI:
led strip
G
IP 20
Class 1
25W
220/240 V
50/60 Hz
1,250 lm
3000 K
50,000h
>0.95
>80
G
IP 20
Class 1
25W
220/240 V
50/60 Hz
1,250 lm
3000 K
50,000h
>0.95
>80
DRIVER LED
Make:
Model:
Quantity:
Dimmable:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary current:
Sizes:
Model:
Quantity:
Dimmable:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary current:
Sizes:
EAGLERISE
LS-40-600 LI EXC
1 Unit/s
No
24W
50-60 Hz
220-240 V
Corriente constante
600 mA
↔ 12.0 ↨ 3.0 4.5 cm
LS-40-600 LI EXC
1 Unit/s
No
24W
50-60 Hz
220-240 V
Corriente constante
600 mA
↔ 12.0 ↨ 3.0
4.5 cmADDITIONAL INFORMATION
Material:
Finish:
Sizes of the canopy (space for installation):
Finish:
Sizes of the canopy (space for installation):
Metal, aluminium, silicone
Sanded black, clear
ø16.0 ↨ 4.0 cm
Sanded black, clear
ø16.0 ↨ 4.0 cm
