Tube138611

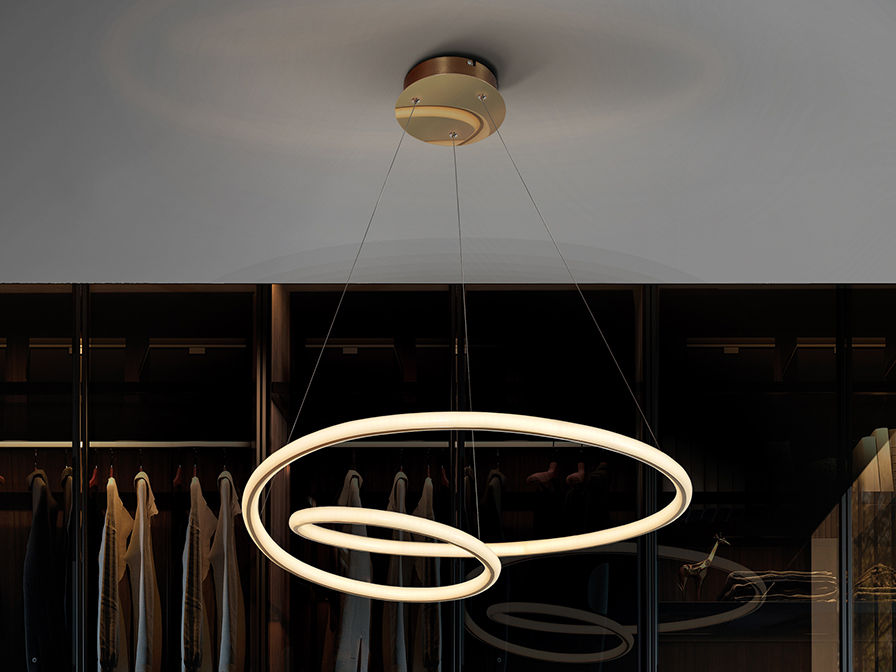

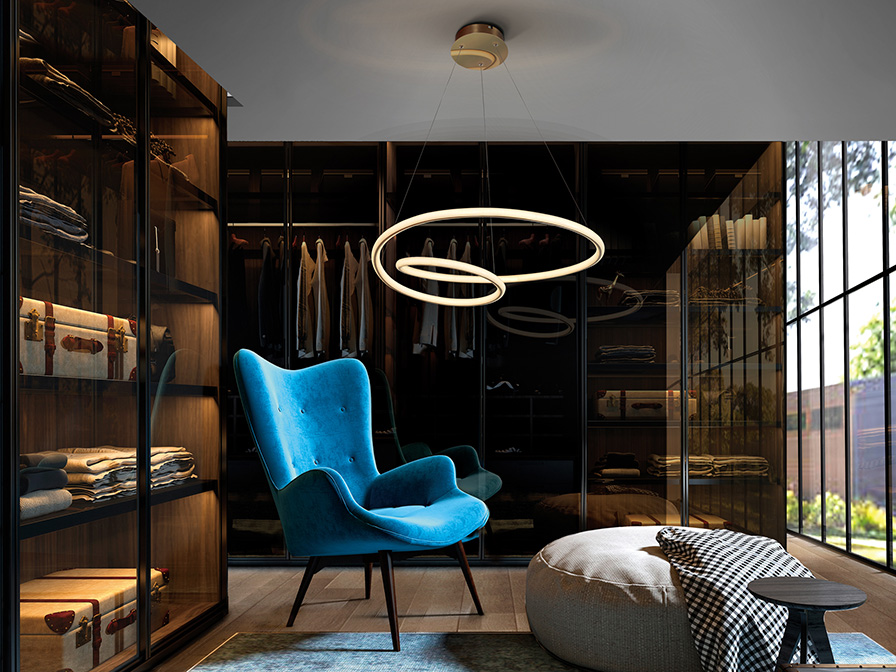

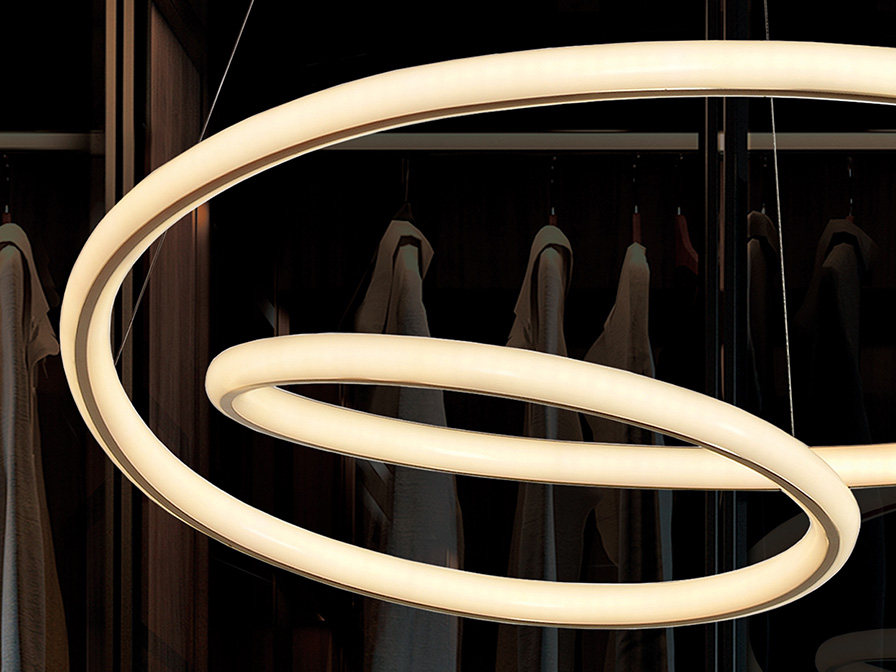

·TUBE· LAMP, GOLDEN

Lamp made of metal and aluminum. Finished in bright gold and matt gold. Tubular diffuser of opal silicone. 47W LED. 3760 lm. 3000K

· This lamp is supplied with GRAVITY TOGGLES, to improve ceiling fixing.

GENERAL INFORMATION

Catalogue:
Page:
EAN Code:
Type:
Collection:

i42 Lighting
103
8435435330637
Pendants
Tube

SIZES

Sizes:
Height installed:
Weight:

ø60.0 ↨ 15.0 cm
50.0/ max. 120.0 cm
1.7 Kg

SIZES WITH PACKAGING

Weight:
Volume:
Sizes:
Contains:

2.9 Kg
0.0360 m³
↔ 63.0 ↨ 9.0

63.0 cm
1 Unit/s

TECHNICAL INFORMATION

Lampholder:
Energy class:
IP protection:
Electric class:
Maximum power:
Voltage:
Frecuency:
Lumen:
Colour temperature:
Average lifespan:
Power factor:
CRI:

led strip
G
IP 20
Class 1
47W
180/240 V
50/60 Hz
3,760 lm
3000 K
30,000h
>0.85
>1

DRIVER LED

Make:
Model:
Quantity:
Dimmable:
Maximum power:
Frecuency:
Primary voltaje:
Type:
Secondary voltaje:
Sizes:

SCHULLER
73602
1 Unit/s
No
60W
50-60 Hz
180-240 V
Voltaje constante
24 V
↔ 13.5 ↨ 3.0

4.5 cm

ADDITIONAL INFORMATION

Material:
Finish:
Sizes of the canopy (space for installation):

Metal, acrylic
Bright gold, opal
ø18.0 ↨ 4.5 cm
